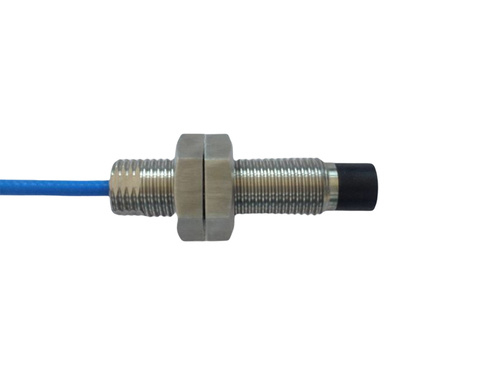

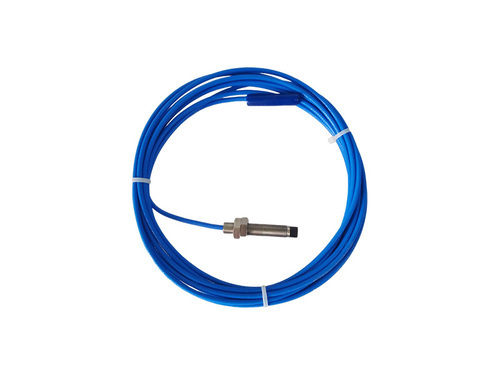

AN1811 eddy-current sensor
AN1811 eddy-current sensor
Classification:
Product Description
Technical data
1. Measuring range: 4mm (160mil) range
φ11 diameter probe; 5m/9m cable system, linear range: 1.00~5.00mm; GAP voltage: -10V (2.5mm), Sensitivity: 3.94mV/μm (100 mV/mil);
2. Frequency response:
0~10KHz, the typical value is 0~-3dB.
3. Power supply:
DC power supply: -24VDC(-20~-26VDC)
Power consumption: The current consumption is not more than 20mA
4. Requirements for the tested body:
Diameter of the measured body (width of the torus): not less than 2 times the diameter of the probe head, if the measured surface is small, it should be calibrated on site.
Factory calibration of the body material: 40CrMo steel/AISI4140 steel, if the material of the body is inconsistent on site, it should be calibrated.
5. Interchangeability error:
The error of the probe of the same model is ≤±5%;
The error of the extension cable of the same type is ≤±5%;
The error of the preamplifier of the same model is ≤±5%;
6. On-site connection:
It is required to use a 0.5~1.5mm2 three-core shielded cable, and the distance between the preprocessor and the monitor is less than 300 meters (1000 feet).
7. Environmental restrictions:
Probes & Cables:
Temperature: -50°C~+170°C;
Working medium: air, oil, water, ammonia hydroxide.
Pre-extender:
Temperature: -35°C~+85°C;
Relative humidity: 0... 95% non-condensing.
8. Physical characteristics:
Probe head material: polyphenylene sulfide (PPS) material;
Probe housing material: AISI 304 stainless steel;
Probe head pressure: 12M, Pa
Extension cable: 75Ω coaxial cable (wrapped in plastic insulated sheath);
Preprocessor Material: A308 Cast Aluminum.
Refer to the implementation standard
American Petroleum Institute API 670 standard;
Safety Certification: C E;
Degree of protection: IP65;
Explosion-proof class: ATEX: II.1 G Exia II.C T4
Immunity to electromagnetic interference: EMC\ LVD
Refer to EN55011\EN 61010\EN50081\EN50082.
Product selection
1. Probe selection:
AN18XX-AXX-BXX-CXX-DXX-EXX-FXX
AN1805/08/11/25/40—φ5/φ8/φ11/φ25
Standard Models:
Shaft vibration probe: AN1811/M-00-05-10-00-00-00
A: Range and specifications:
05/M—2mm range, metric M8×1
05/I—2mm range, inch 1/4"-28UNF
08/M—2mm range, metric M10×1
08/I—2mm range, inch 3/8"-24UNF
08/MR—2mm range, reverse mounted metric M10×1
08/ IR—2mm range, reverse mounted inch 3/8"-24UNF
11/m—4mm range, metric M14×1.5
11/I—4mm range, inch 1/2"-20UNF
11/ MR—4mm range, metric M14×1.5
11/ IR—4mm range, reverse mounted inch 1/2"-20UNF
25/m—10mm range, metric M30×2
25/I—10mm range, inch 1 1/4"-12UNF
40/16-16mm range, 80×40 rectangular flange mounting
40/20-20mm range, 80×40 rectangular flange mounting
XX – Others
Note: For other models, please consult the company's technical department for details
B: Unthreaded length:
00—0mm / 0 in
05—5mm/ 1/4 in
10—10mm/ 1/2 in
XX – Others
Note: When the probe thread is selected in the metric system, the length of the thread without thread is expressed in mm; Probe thread specifications are indicated in inches when selected as inch. The longest unthreaded is smaller than the probe housing
25mm/1in, the unthreaded length of the reverse probe is fixed at 5mm
C: Total length of the shell:
05—50mm / 2 in
10—100mm/4 in
03—30mm/ 1.2 in (reverse probe housing size)
XX – Others
Note: The total length of the shell is increased by 10mm/0.5 in, the maximum total length of the shell is 250mm/10 in, and the shortest is 30mm/1in
D: Probe with cable length
05—0.5m
10—1m
50—5m
90—9m

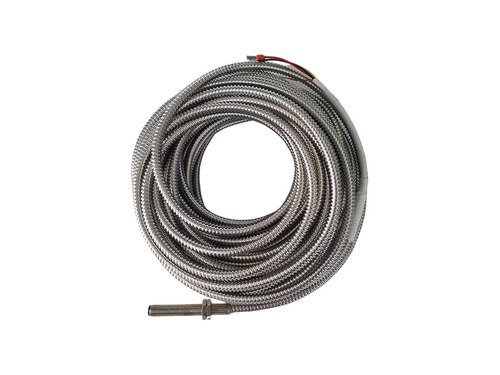

E: Armoured option
00—non-armor
01—Armor
F: Approving Body
00—No requirement
01—Explosion-proof: EEx iall CT4
XX – Others
2. Selection of extension cables:
AN1880-AXX-BXX-CXX-DXX
A: Cable length
40—4m
45—4.5m
80—8m
85—8.5m
B: Armoured option
00—non-armor
01—Armor
C: Approving Body
00—No requirement
01—Explosion-proof: ExiallCT4
XX – Others
3. Preprocessor selection:
AN1800-AXX-BXX-CXX-DXX
A: Diameter of matching probe
05—5mm probe
08—8mm probe
11—11mm probe
25-25mm probe
XX – Others
B: Total cable length (probe + extension cable)
05—5m
09—9m
C: Installation method
00—DIN35mm rail installation
01—bottom plate installation
D: Approving Body
00—No requirement
01—Explosion-proof: ExiallCT4
XX – Others
